Description
4WD
UP TO 4
OFF ROAD
BALL WEIGHT 180KG
ATM 2800KG
TARE 1844KG

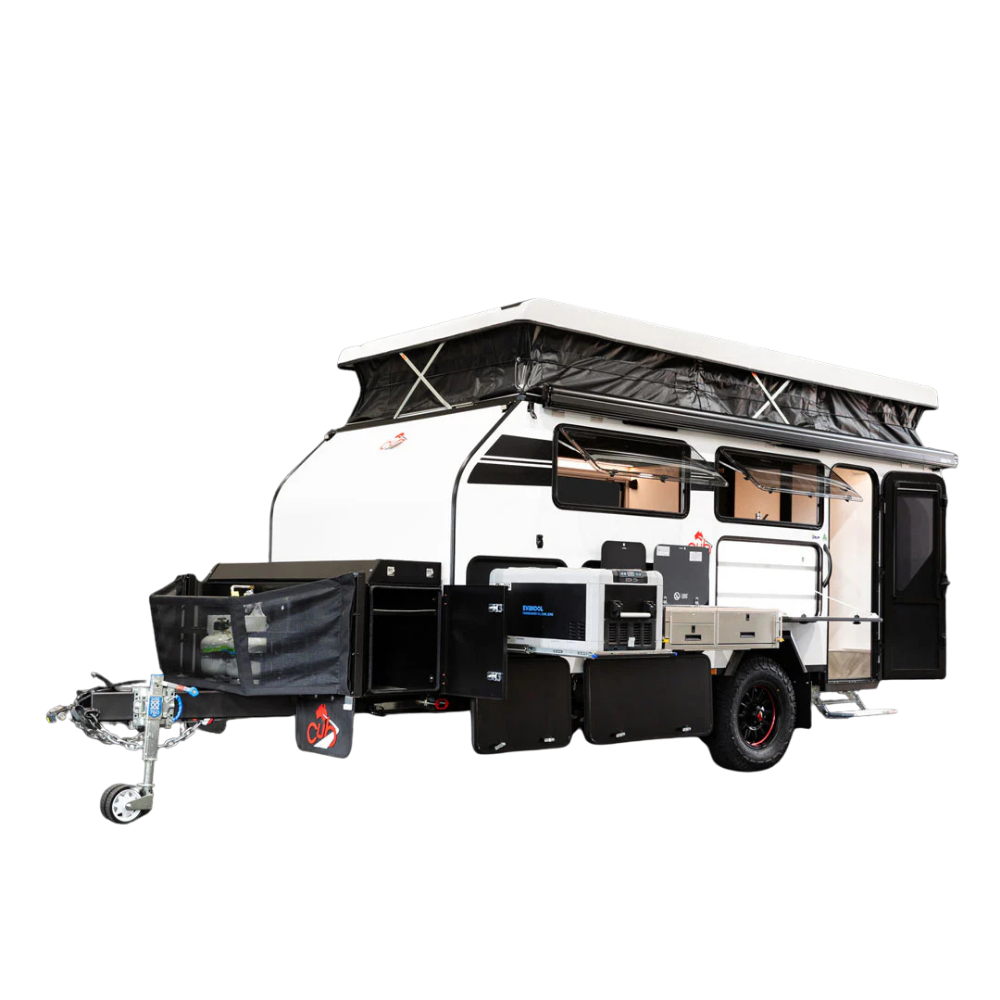

Explore the open road with the Cub H16, a premiere pop top hybrid caravan designed for those seeking the perfect blend of toughness and luxury. Constructed with a robust Bluescope Steel chassis, the H16 carries forward Cub’s proud tradition of Australian Made excellence. This lightweight, affordable model offers enhanced storage capacity without compromising on the luxury features Cub is known for, making it an ideal choice for both couples and families. Enjoy modern comfort with a bright, airy interior, perfect for relaxing on the pillow top mattress or under the awning with your favourite music.
The Cub H16 is engineered for maximum off-road luxury, providing all the amenities you need for comfortable adventures across Australia. With advanced power management systems including a 150AH Lithium Battery and dual solar panels, this caravan is built for off-grid exploration. Featuring a spacious interior with quality fittings like a Dometic fridge and Smev appliances, the H16 ensures you travel without any of the usual constraints. Supported by over 55 years of RV manufacturing experience and a 5-year suspension and chassis warranty, the H16 is your reliable companion for discovering Australia’s hidden treasures.
Body Specs
ATM: 2800kg
Ball Weight: 180kg*
Tare: 1844kg*
Internal Height: 2.035m
Internal Length: 4.80m (16ft)
Internal Width: 2.04m
Towing Height: 2.515m
Towing Length: 7.15m
Towing Width: 2.23m
Brakes & Wheels
Cruisemaster Square Axle: Standard
Brakes: 12″ Electric
Spare Wheel: Alloy
Tyres: Kumho AT52
Wheel Type: 17 x 8 Black Alloy (6/139.7 PCD)
Drawbar
4kg Gas Bottle & Holder: 2
AL-KO Ball Hitch: 50mm Off Road
Ark XO 750 Jockey Wheel: Standard
Drawbar: 150 × 50 × 3.0mm
Galvanised Steel Stoneguard: Standard
Jerry Can Holder: 2
Stonestopper Mud Flaps: Standard
Tool Box & Rack: Standard
Suspension & Chassis
AL-KO Wind Down Legs: 4
Australian Galvanised Steel Chassis: Standard
Rear Recovery Points (2400kg Rating): Standard
Shock Absorbers: Twin
Cruisemaster ATX Coil: Standard
Inside Fittings
Bed Size: 2100 × 1600 x 135mm
Mattress Front: Slumberest Cloud 9 Pillow Top
Dinette Seats and Table: 2
Perforated Seat Cushions: Microfibre Leather in “Volcano”
Wardrobe: Standard
Outside Fittings
Awning 4.5m: Standard
Entry door: 1623mm (Aussie Traveller): Standard
Entry grab handle with Light: Standard
Rear Utility Rack (Inc. Spare Wheel Bracket): Standard
Storage Hatches: 4
Internal
Ezy Clean Kitchen Top: Standard
Fridge – Dometic NRX 115C: 115L
Mixer Tap – 3 Way: Standard
Stainless Steel Sink: Standard
Storage Soft Close Drawers: 3
Water Filter: Standard
External
Drawers: 2
Ezy Clean Kitchen Top: Standard
Fold Out Shelf: Standard
Fridge Box and Slide: Standard
Fridge Box Size: W=560mm L=930mm H=490mm
Mixer Tap: Standard
Smev Stainless Steel Stove & Sink: 3 burner
Smev Stainless Steel Wind Deflector: Standard
Floor Mat – “Teak Look” Removable: Standard
Mirror: Standard
Roof Vent: Standard
Shower – Internal and External: Standard
Toilet – Thetford Cassette: Standard
Towel Hook: Standard
12V Pump: 11 L/min
100L Heavy Duty Water Tank: 1
100L Heavy Duty Grey Water Tank: 1
Brass Tap for Water: Standard
Water Gauge: Standard
Audio/Visual
Fusion Stereo & 4 Speakers: 6″ 3 way
Comfort
Erberspacher Hot Water & Heater: Standard
Electric Pop Top Roof: Standard
Inlets/Outlets
12V Accessory Socket – External & Internal: 6
12V Twin USB Socket – External & Internal: 6
240V External Inlet: Standard
240V External Outlet: Standard
240V Internal Double Outlet: 2
Lighting
LED Awning Light: 2
LED Bedside, Cabin and Floor Lighting: Standard
LED Kitchen Light – External: 2
LED Sensor Light – External Storage Areas: 2
LED Sensor Light – Under Bed Storage: Standard
Power Management
150AH Lithium Battery (5 Year Warranty): 1
Redarc BMS30 Charger: Standard
Redvision Display: Standard
Solar Input (Anderson Plug) – Suits Unregulated Solar Panel: Standard
Solar panel – Redarc 180 Watt: 2
* All model specification details are subject to change.
The tare and ball weights are a guide only and will change depending on drawbar layout and accessories fitted to your caravan. Please discuss with a member of our team prior to purchase. Each Cub Camper is weighed on completion of build and a precise written weigh bridge certificate is then provided.
Please note that all images displayed on this page are for illustrative purposes only and may include optional equipment and features. Please confirm final specifications and features with DBC prior to purchase.
Choose the layout for you!

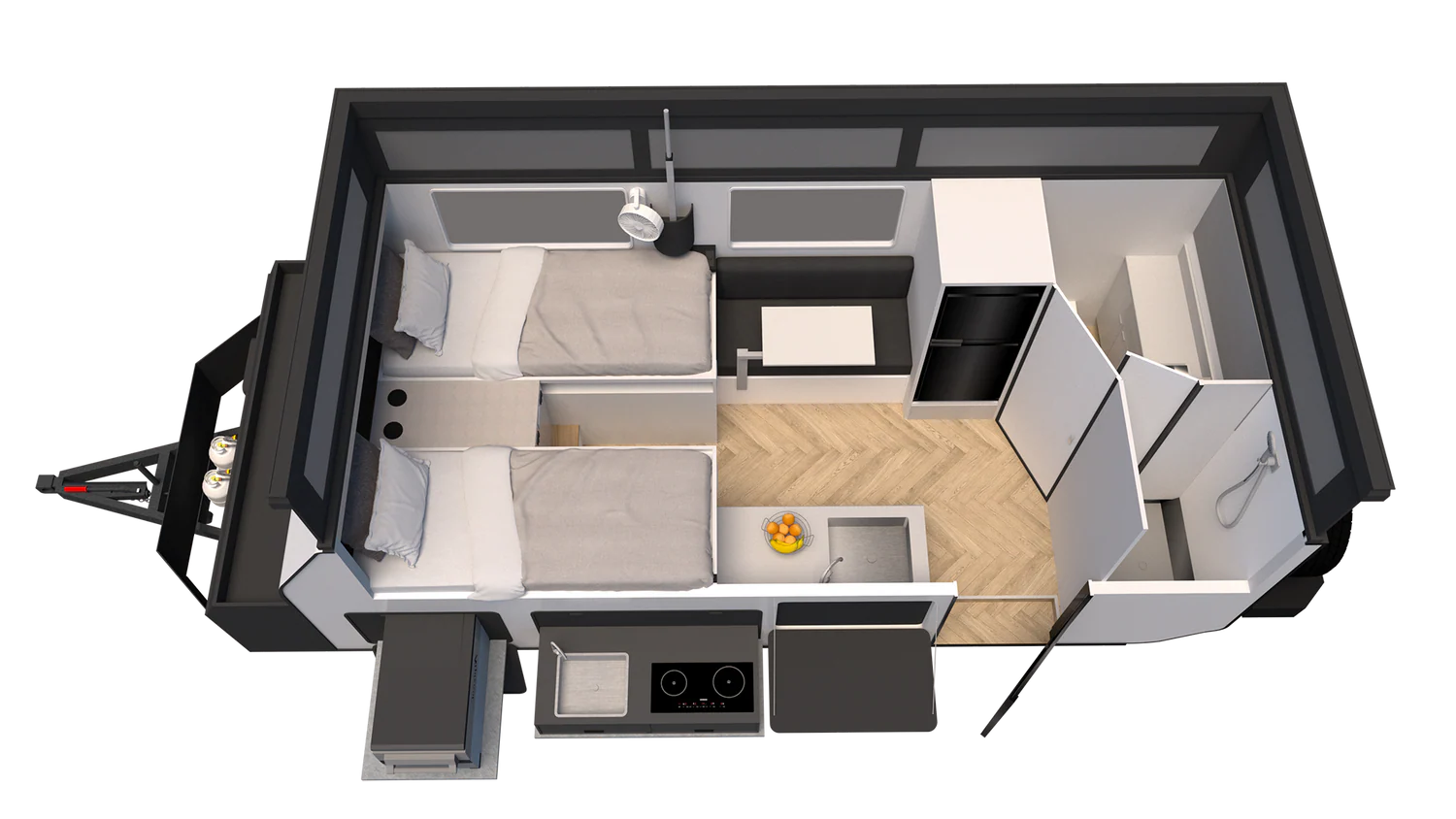

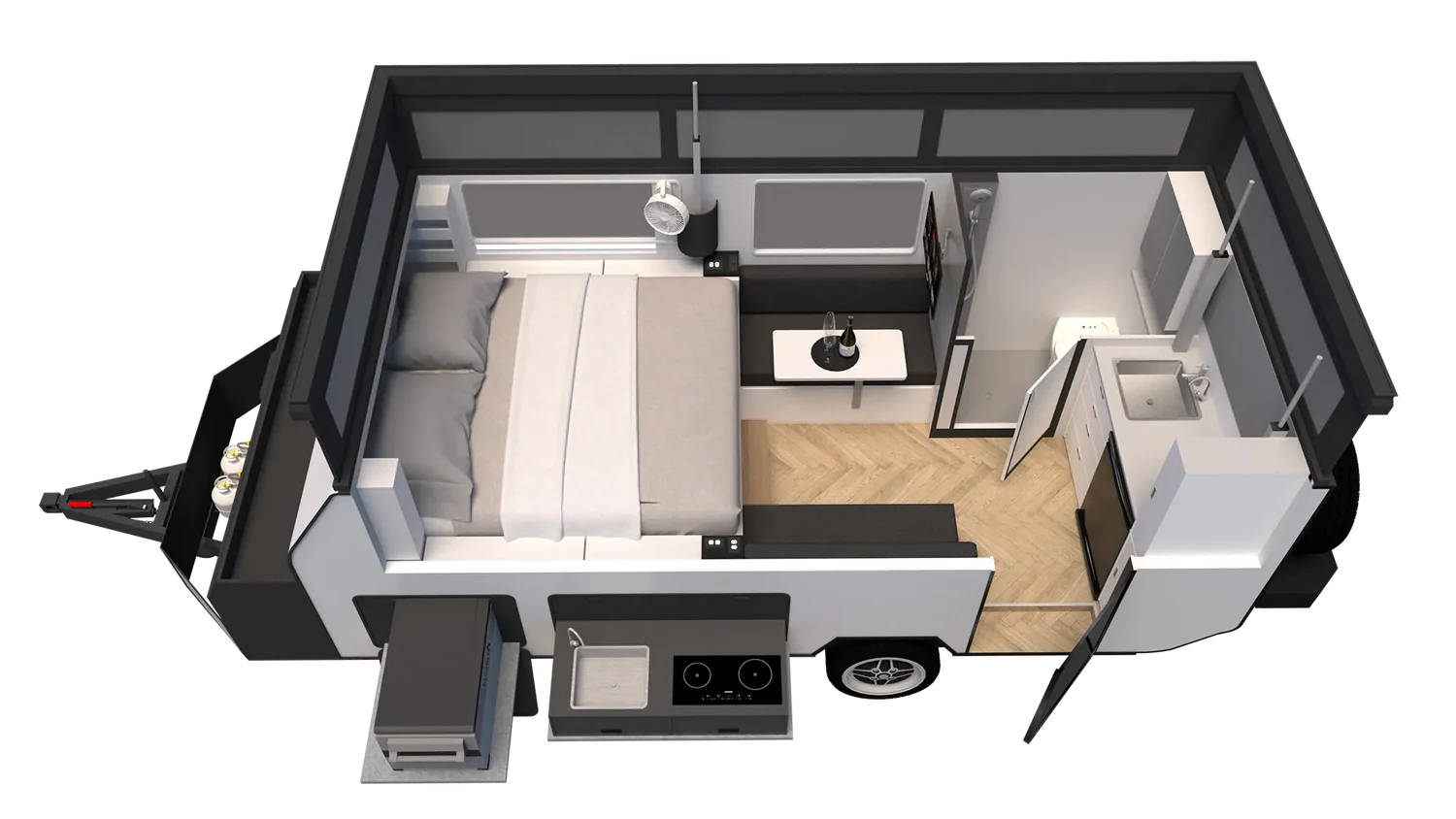

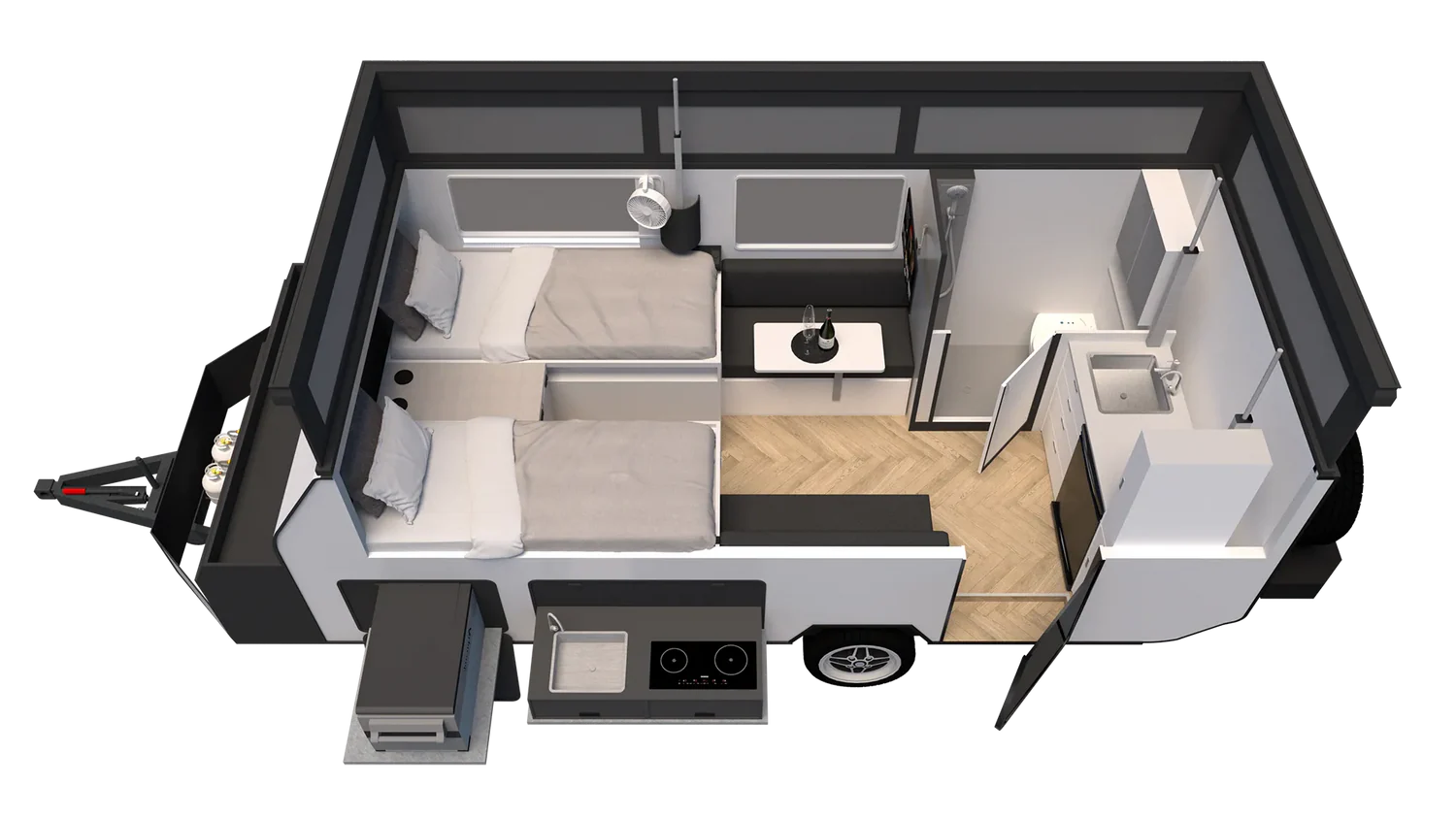

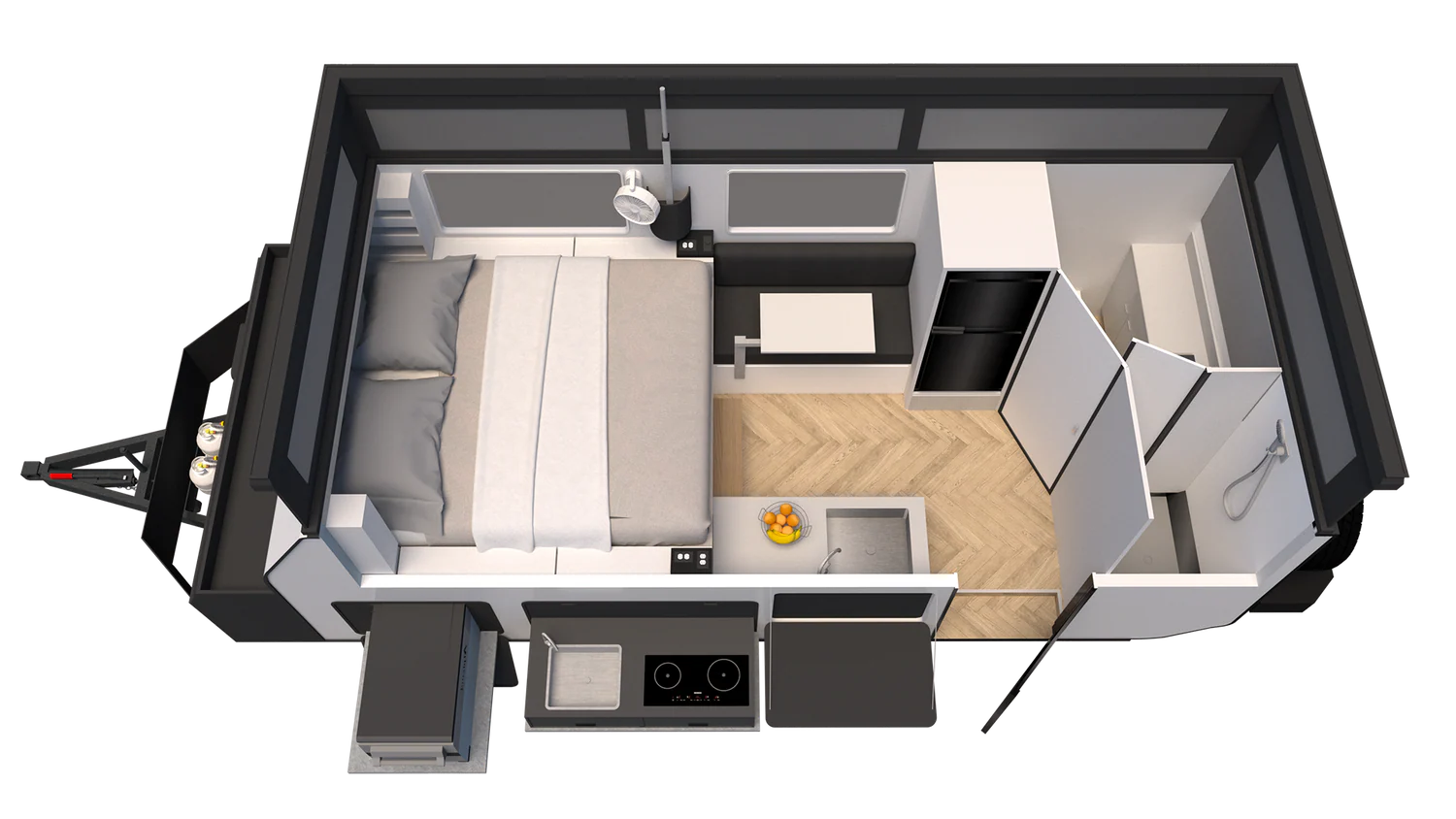

Our 16-foot caravan range comes standard with a King bed but can be customised to include two twin singles or a bunk bed configuration with a Queen bed in an East-West layout.
