Description
4WD
UP TO 4
OFF-ROAD
BALL WEIGHT 175KG
ATM 3500KG
TARE 2743KG

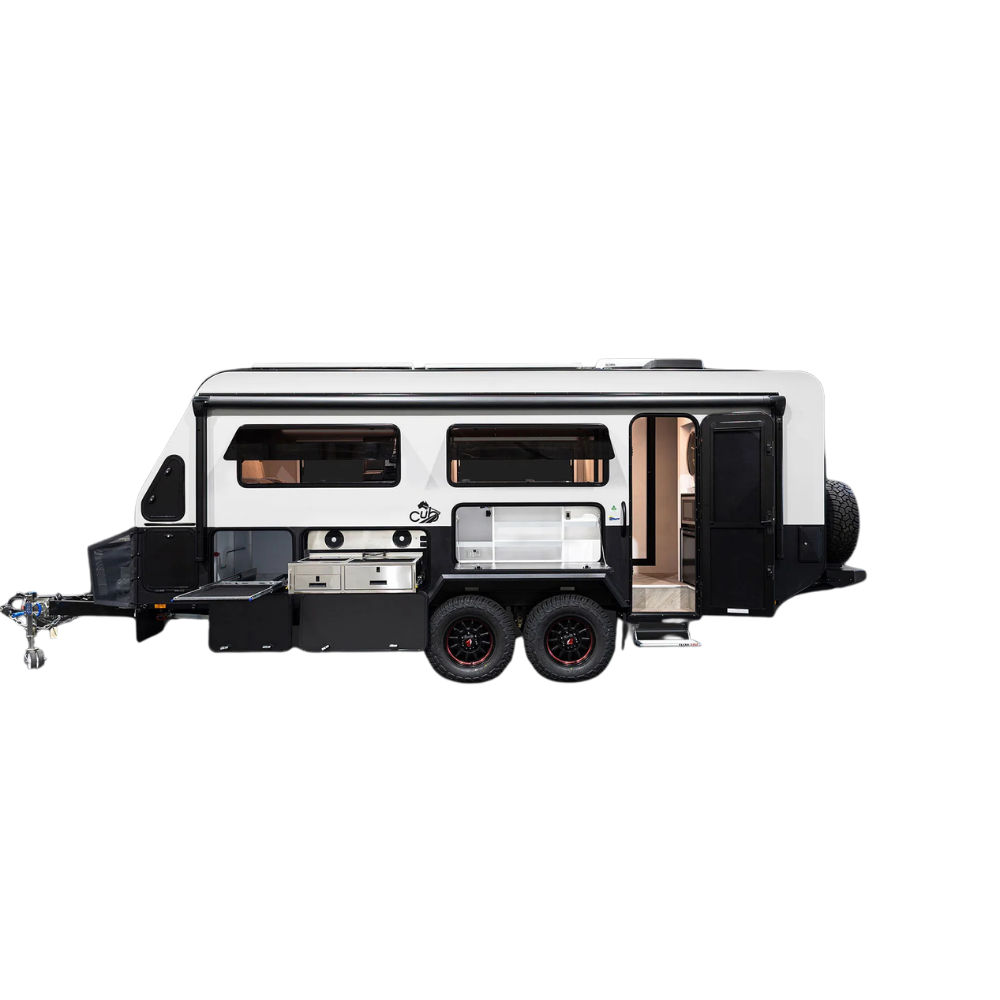

Introducing the Cub C18, a premium luxury off-grid hybrid caravan created for travellers who want comfort, capability, and independence on the road. Proudly Australian-made, the C18 features a modern aerodynamic body, spacious interior design, and high-quality materials that reflect Cub’s reputation for outstanding craftsmanship. With a layout suited to couples and the option of a rear ensuite or bunks, the C18 offers a refined travel experience whether you’re heading into the outback or setting up by the coast.
Equipped for serious off-grid touring, the Cub C18 comes with substantial lithium battery storage, roof-mounted solar, inverter power, and generous water capacity to support extended remote travel. Its twin-axle platform, Cruisemaster ATX 2.8T airbag suspension, automatic levelling, and robust Australian-made construction make it well suited to challenging conditions across the country. Backed by Cub’s long-standing RV manufacturing experience, Australia-wide support, and a 5-year suspension and chassis warranty, the C18 delivers a luxurious and capable way to experience Australia without leaving comfort behind.
Body Specs
- ATM: 3500kg
- Ball Weight: 230kg*
- Tare: 2743kg*
- Internal Height: 2.040m
- Internal Length: 5.40m (18ft)
- Internal Width: 2.04m
- Towing Height: 3.015m*
- Towing Length: 8.050m
- Towing Width: 2.250m
- Minimum Height: 2.945m
- Maximum Height: 3.125m
- Colour: Grey
Brakes & Wheels
- Cruisemaster Square Axle: Dual Axle
- Brakes: 12″ Electric
- Spare Wheel: Alloy
- Tyres: Yokohama 285/70R17 X-AT Tyre
- Wheel Type: 17 x 8.5 Method Black Alloy (6/139.7 PCD)
Drawbar
- 4kg Gas Bottle & Holder: 1
- Ark XO 750 Jockey Wheel: Standard
- Hitch: D035
- Drawbar: 150 x 50 x 3.0mm
- Galvanised Steel Stoneguard: Standard
- Jerry Can Holder: 1
- Stonestopper Mud Flaps: Standard
- Tool Box: 1000mm x 500mm x 500mm
Suspension & Chassis
- AL-KO Wind Down Legs: 4
- Hot Dipped Galvanised Chassis: Standard
- Cruisemaster ATX 4.5T Air Bag Suspension: Standard
- Shock Absorbers: Twin
- Stability Control: BMPRO
- GPS: Humming Bird
- Drawbar: Raptor coated
Inside Fittings
- Bed Size: 2100 x 1600 x 260mm
- Mattress Front: Slumberest Healthy Rest
- Dinette: L Shape
- Under Bed Drawer: 2
- Overhead Cupboard: 6
- Seat Cushions: Microfibre Leather
Outside Fittings
- Awning Carefree Electric: 5.1m
- Entry Door: 1822mm high (Aussie Traveller)
- Entry Grab Handle With Light: 2
- Rear Utility Pack (Inc. Spare Wheel Bracket): Standard
- Storage Hatches: 8
External Kitchen
- Drawers: 2
- Kitchen Top: Ezy Clean Stainless Steel
- Fridge Box Size: W=560mm L=930mm H=515mm
- Mixer Tap: Chrome
- Cook Top: Induction – Dual Zone
- Sink: Smev Stainless Steel
Internal Kitchen
- Kitchen Top: Xenolith
- Fridge: Thetford 175L
- Microwave: 900W
- Mixer Tap: 3 Way
- Sink: Stainless Steel
- Storage Soft Close Drawers: 4
- Towel Rail: Double
- Mixer Tap: Chrome
- Shower: Internal and External
- Sink: Stainless Steel
- Toilet: Ogo Composting
- 12V Pump: 11 L/min
- 100L Heavy Duty Water Tank: 200L total with 2x 100L
- Heavy Duty Grey Water Tank: 100L
Power – Audio/Visual
- Fusion Stereo: Bluetooth 4 Speakers
- Star Link: Access Only
- TV: 32″ Smart (Inc. Swivel Bracket)
Power – Comfort
- Air Conditioner: Eberspacher 3.6KW
- Hot Water & Heater: Eberspacher
- Camera: Rear
- 12V Fans: Driver & Passenger Side
Power – Inlets/Outlets
- 12V Accessory Socket – External & Internal: 6
- 12V Twin USB Socket – External & Internal: 6
- External Inlet: 240V
- External Outlet: 240V
- 240V Internal Double Outlet: 2
- 12V Wireless Chargers (Bedside): 2
Power – Lighting
- LED Awning Light: 3
- LED External Floodlights: 3
- LED Sensor Light – External Storage Areas: 3
- LED Sensor Light – Under Bed Storage: 1
Power Management (Electrical System)
- 150Ah Lithium Battery (5-Year Warranty): 600Ah (4x)
- Redarc Charger: BMS100
- Redarc Inverter: 3000W
- Redvision Display: TVMS
- Solar Input: Anderson Plug (Suits Unregulated Solar Panel)
- Solar Panel – 180 Watt: 720W (4x)
* All model specification details are subject to change.
The tare and ball weights are a guide only and will change depending on drawbar layout and accessories fitted to your caravan. Please discuss with a member of our team prior to purchase. Each Cub Camper is weighed on completion of build and a precise written weigh bridge certificate is then provided.
Please note that all images displayed on this page are for illustrative purposes only and may include optional equipment and features. Please confirm final specifications and features with DBC prior to purchase.

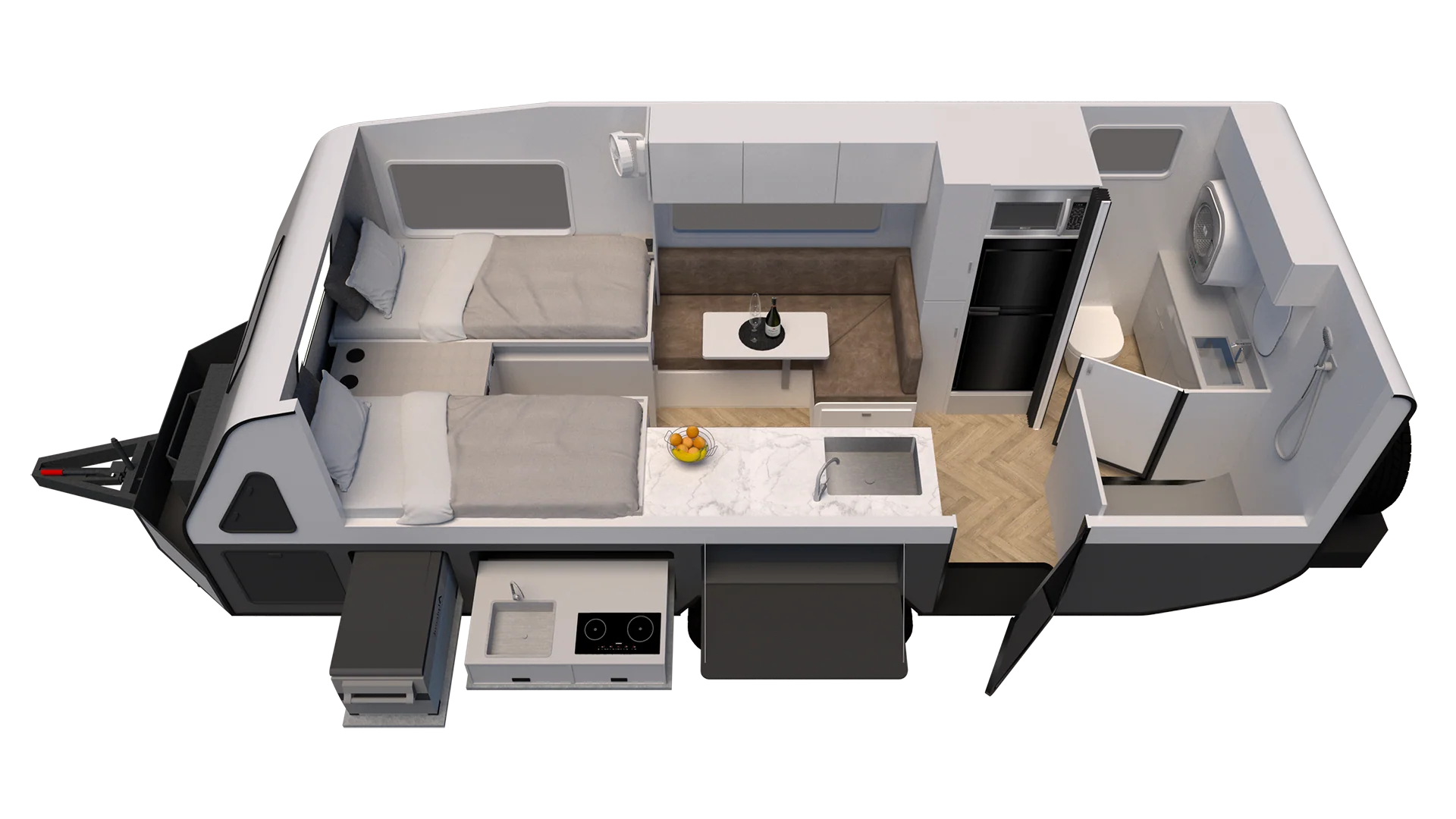

Choose the layout for you!
Whether you prefer more living space, extra storage, or a family-friendly setup, it’s designed to adapt to your needs with smart, practical design for real-world touring.
